Construction:-

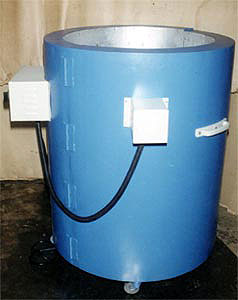

This Industrial
drum heater ( vertical model) has a well type, double
walled construction. The Inner chamber is made of MS
with a heat resistive silver paint finish, and the outer
chamber is also made of MS with a powder coat finish.
The unit has an electrical heating system, suitable for
heating 200ltrs standard size drum. The drum heater is
made into 2 semicircular halves, which are joined at one
end by heavy duty hinges & clamps and at the other end
by a special press fit adjustable lock, with the control
panel on one half + heater,& heater + connector junction
box on the other half. A SS ‘U’ type Enconel heater of
suitable capacity is used as the heating element for
uniform distribution of heat. The maximum achievable
temp. is 250ºC. A digital microprocessor PID temperature
controller cum indicator with PT-100 sensor controls the
heating process. The unit is easily moveable on its
castor wheels.
Power :-
440 V, 50 Hz, 3-Ø power supply. |
