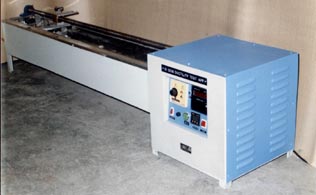

BITUMEN - DUCTILITY  APPARATUS

Ductility apparatus :- As per IS 1208-1978:

Use :-
Used for the determination of ductility of distillation residue of cut back bitumen, blown type bitumen and other bituminous products.

Description :-
Unit consists of water bath; with heating arrangement controlled by digital temp. Controller with PT100 sensor to maintain desired temp. The pump is used as stirring arrangement. The cold water can be poured / drain by drain valve. The IS specified C.r.m.b test is carried by this m/c.

The special feature of this m/c are :-

• The Two speeds of displacement viz.50mm/min & 10mm / min can be achieved by 3 positions Toggle switch only.

• Auto Forward / Zero set start / Reverse displacement is done by single switch.

• The displacement can be read directly from digital displacement indicator in mm.

• Digital timer & displacement drive with digital displacement indicator is coupled as per demand of test.
  C.R.M.B. IS Specified Brass Mould cr-Plated Available
