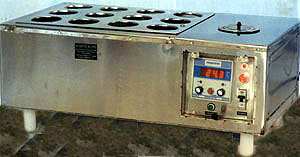

BATHS - 12 HOLE WATER BATH

Global make thermostatically controlled water bath's are ideally used in research analytical lab & biotechnology for testing specimen, reagent etc. under constant temperature of water bath. It is made up of doubled wall construction inner SS-304 duly argon welded polished & outer SS-304 matt finished. The lid is provided with either 6 holes or 12 holes to accommodate various capacity of flask with concentric ring. The equipment is fitted with ISI heater & capillary type imported thermostat with Digital Temperature Controller with PT-100 sensor as optional. (Accuracy)

Features:-
Temperature Range 5°C above ambient to 99.9°C.

HOLE	FOR 6 HOLE	FOR 12 Hole
Models	GMP-GC-1 9 'A'	GMP-GC-1 9 'B'
Capacity	8 Itrs	11 Itrs
Working Size (cms)	35X25X10	40X30X10
External Size (cms)	50 X 32 X 20	55 X 38 X 20
Inner Chamber	Stainless Steel 304 quality
• External	Mild Steel Powder coated / Stainless Steel
Range	5°C above ambient to 99.9°C
Controller	Thermostat Controller
Sensor	Liquid expansion capillary
Accuracy	+ / - 2°C
Uniformity	+ /-2°C after 30 min.
Heat up time	45 min. upto 99.9°C without load with respect to ambient
Insulation	Glass Wool 40 mm
1 Capacity (Watts)	1000	1500
Power Consumption	4 amps	6 amps
Net Weight, approx.	8 Kgs	12 Kgs
Electric requirement	AC 230V & 50 Hz cycle.
Optional
Controller	Digital Temperature Controller with PT-100 type
Safety Circuit	Electronic Low Water Level Cut Off Circuit.
