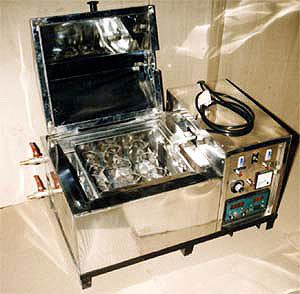

BATHS - ORBITAL SHAKEN BATH

The Global line-up of orbital shakers is flexible and reliable. It is a high performance line of universal laboratory equipment. Proper selection of accessories and attachments allow the shakers to accommodate different laboratory applications. The orbital shaker bath has an efficient design and a user-friendly interface.


Features :-

  • Optimal platform rotation amplitude for intensive mixing

  • Advanced motor control system

  • Digital timer

  • High-precision digital rotation speed controller

  • Sound notification when timer is out

  • Memory onboard for storing user settings

  • Possibility of continuous operation

  • Maintenance-free

  • Shaking speed 20-200 rpm, orbit diameter of 25 mm.

  • Pyramid Hinged Lid at the top of tank for noise/dust free shaking.

  • Microprocessor based PID temperature controller cum indicator with PT-100 sensor

  • Lotus clamp of spring stainless steel for holding conical flasks from 100 ml to 500 ml capacity.

Tray size

No. of flasks (conical)

Tank Size
L x W x H

SS 304 325mm x 325mm

12 flasks of 100 ml. /
6 flasks of 250 ml. /
4 flasks of 500 ml.

425 x 425 x 150 mm

SS 304 425mm x 425mm

16 flasks of 100 ml. /
12 flasks of 250 ml. /
6 flasks of 500 ml.

525 x 525 x 150 mm

Note : Microprocessor based programmable controller with built in timer & control for motor R.P.M rate can be provided on request
