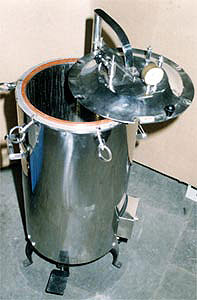

HOSPITAL EQUIPMENTS - VERTICAL AUTOCLAVE

Construction :-
The unit has a double walled construction, complete with fully SS 304 construction (Argon Welded Chamber) & a Jacket of 18 SWG. The unit is fitted with an efficient radial locking system made of mild steel, chrome plated, with paddle lifting device. The unit is supplied complete with stainless steel basket. The unit is fitted with safety and pressure release valves, water level indicator, cord & plug. The machine is fitted with a fully automatic microprocessor based temperature controller. The cycle is fully automatic including purging, sterilizing, rapid cooling & safety features such as process timer, low level water alarm, over heat Protection, high-pressure cutoff, two mechanical safety valves etc. The lid is made of SS.304, with Silicon rubber gasket used for sealing, supplied with pressure gauge & unique special round heater - to achieve pressure up to 20 Psi.





Size: (H x D)

Capacity

450mm x 250mm

22 Ltrs.

500mm x 300mm

35 Ltrs.

550mm x 350mm

52 Ltrs.

600mm x 450mm

95 Ltrs.

750mm x 550mm

175 Ltrs.



Optional :-

On demand Software based online Microprocessor programmable PID controller with Time proportionate bands with data logger & cyclic timer, real clock battery backup & RAM memory, printer & PC interface controller with PT-100 sensor can be provided with the unit at Extra cost. Our systems are fully controlled, easy to handle, user friendly, intelligent and reliable.
