has a reset button & start
by SET pressing of button. A toggle switch is provided
for UP & DOWN movement selectable. A downward chamber
movement is indicated by downward display counts at LED
& upward count by up counting display counts at LED.MCB
power switch is provided to “ON” the UNIT. The Motor
Control Counter Box is fused through a 3.25’ (1 m) long
hospital grade mains molded power supply cord with 16A 3
pin top plugs.
A 1.5 meter fully shielded cable connects the Motor
Control Counter Box to the Motor Drive Box.
The Motor Drive Box sits on the side of the water
phantom and is manually positioned in the X or Y axis
using the scales on the side of the phantom. The Motor
Drive Box is held in place using the two tightening
screws at its back. The momentary 2way toggle switch on
the panel of the Motor Control Counter Box also controls
the up/down direction of travel. A speed regulator Knob
for adjusting the speed of Motor is also provided with
Unit (as Optional). The no. of counts of travel is
preset at the Motor Control Counter Box. The vertical
position is displayed in millimeters can be read on the
40 cm scale attached to the Tank ‘OR’ chamber. The
maximum vertical travel is 30 cm.
For safety the maximum power supply to the motor is 24
volts D.C 60 RPM fixed.
Water Phantom
The water phantom has 1/4" (0.635 cm) thick clear
acrylic sides, a 3/8" (0.953 cm) thick white acrylic
bottom, and a clear acrylic support rim”1/2” (1.254cm)
at the top of the phantom. The white bottom allows for
easy viewing of the chamber and cross hair shadows. The
water phantom has a tank plug / a drain valve assembly
(same can be used as water input plug & then can be used
as a drain outlet). A 5' (1.5 m) drain hose is also
included. Two sides of the water phantom have ±16 cm
scales with millimeter markings.
The depth (moving fixture)
has a half-round cutout at the base which allows
positioning on the active area of a clear acrylic
waterproofing tip for a farmer style chamber. When using
the 40 cm sticker depth scale on the active chamber area
of a waterproof farmer style chamber (all manufacturers)
to measure water depth, subtract 1 mm from depth
reading.
Small Water Phantoms Include
-
Motor Drive Box
-
1.5 mtr cable
-
Motor Control Counter
Box
-
Chamber moving fixture
(UP-DOWN) of delrin
-
Acrylic holder for a
Forcep Style Chamber
-
Drain valve/Plug
assembly
-
Pipe plug
-
5' (1.5 m) drain hose
with hose connection
Specifications
Motor Drive System
Power: 230V VAC, 50/60 Hz
Display: 4 Digit LED for Count
Travel: 30 cm
Cable: 1.5 mtr fully shielded
Motor: reversible, 24 VDC
Water Phantom Tank
Inside Dimensions: 30 cm x 30 cm x 40 cm D
LTR : 36 (when full)
NOTE:
You will be offered 15% Discount
on the quoted price on ad-hoe basis. Please go through &
let us know your valuable reply for further proceedings.

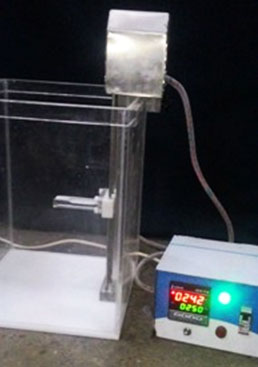

NOTE: As we are constantly upgrading the
precise performance of the UNIT by getting feedback from
our esteemed END-USERS, it is likely that the design may
change with respect to above photograph, which may be
noted firmly without notice. |
