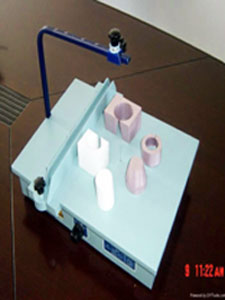

HOSPITAL EQUIPMENTS - GMP GC-61A Mini Standard Foam /

Thermocole Size Cutter With Precise Regulator

https://goo.gl/photos/68pXe3pwZJq4RC8DA


Global Corporation has come out with the low cost MINI Foam/Thermocole Cutting m/c to cut & make the BLOCK as per required size by setting the gauge size. Simple to operate, easy to cut through Regulator to control the HOT nichrome alloy wire.

The Hot Wire Foam Cutter is designed for cutting EPS foam (Styrofoam) by using a Hotwire. Cutting by wire doesn't produce dust or chips ensuring a clean surface.It is made-up of two parts,one is HOT-WIRE mounted wooden Box & the other is MS Epoxy powder coated Digital Display (direct read-out % of Power flowing through HOT wire with POT-REGULATOR knob & MCB.

  • Built-In Digital Display Variable % of Power Supply with pot to control power flowing in HOT wire.

  • 8-Inch Hot Wire Cutting Height

  • 12" x 22" Foam/Thermocole Cutting Table



Note: Heated Wire expands when hot. If the tension is too tight the wire may break restricting operation of mechanism. If too loose, the cut will be sloppy. Readjustment of tension may be necessary from time to time.

Safety Tips

Power Controller –. Load the 8” long Heating wire (supplied along with UNIT) at TOP & Bottom by tightening Screw device & ensure that it should be properly tightly strengthen (not too tight or too loose). Set the power % in the display of DIGITAL READ_OUT CONTROLLER to zero (0) before the START of UNIT. Turn on the hot wire power control POT-REGULATOR knob slowly in Clock-wise direction (to increase the display reading) and adjust the Display reading (which is termed as power % flowing in HOT wire) until the wire glows little orange. Immediately back off (anti-clockwise to decrease % of power) the control POT-REGULATOR knob only

LITTLE-BIT slowly until the heated wire just begins to turn from orange to gray.This is the optimum foam/thermocole cutting temperature of the wire & then try to cut the Foam/Thermocole. If one feels that the cutting is improper ,the by adjustments of POT-REGULATOR knob (by increasing/decreasing permutation-combinations, one can optimize the use of m/c.
Anything hotter will cause premature wire failure or anything cooler will require too much feed pressure on the wire causing premature failure. If the wire is too hot, the cut may not be as accurate as you would like. A wire that is too hot will melt the foam too quickly at the beginning of the cut and less quickly as the wire cools off resulting in an inaccurate cut.

  • Use only the recommended wire.

  • Do not use this equipment in wet or damp conditions.

  • Use only grounded receptacles.(EARTHING secured)

IMP NOTE: The above Foam Cutter is primarily used for “LOW DENSITY” PU type of foam like:

High Resiliency (HR) Seating Foam Cushion - SOFT (2.2 lb / cu. ft. Density - ILD: 28)
Medium Standard Seating Foam Cushion - MEDIUM (2.0 lb / cu. ft. Density - ILD: 30)

Above foam are used for mattresses, average sofa and chair cushions, upper scale furniture seating and mattresses.
Also it can be used for LOW DENSITY Thermocole cutting of any variable thickness.

NOTE: We are in process of constant alternate design & development of the UNIT to suit various needs of END-USERS, hence the product design & photo will change without notice , which is to be noted firmly.
The above model now is being made in two parts. One is Control Box Unit with regulator in CRCA MS Powder coated Unit & second part is HOT wire Unit completely made in wooden to prevent damages in transport & shock-proof.

Terms

1. Delivery:

Within 10 days only against FIRM purchase-order.

2. Payments:

100% ADVANCE along with PO against our “PROFORMA INVOICE “before FINAL dispatch.

3. Warrantee:

One year from the date of delivery against manufacturing defaces.
There is no warrantee for Electrical parts due to fluctuation in
supplied volts "OR" misuse of operation.

4. Tax:

VAT Tax @ 13.5% is applicable: OR: 2% CST if out of Maharashtra state.

5. Spares:

Heater Spare wire -- 5no. will be given free with Unit.

6. Packing & Forwarding Charges:

Extra as applicable (@10% 0f Sale Price approximately).

NOTE: As we are constantly upgrading the precise performance of the UNIT by getting feedback
from our esteemed END-USERS, it is likely that the design may change with respect to
above photograph, which may be noted firmly without notice.
