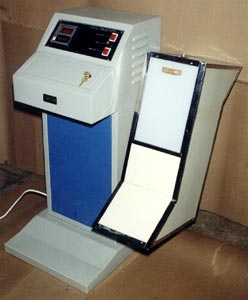

Tumbling Barrel As
Per Is: 1293,1988, Clause : 23.2
It's used for testing mechanical strength of electrical
switches of 6A/16A/32A.Control panel made up of MS
powder coated finish with wooden tumbling barrel as per
IS specification with sliding acrylic door. The wooden
tumbling is freely rotated at a constant speed of 5rpm
by the constant speed gear motor. Digital rotation
counter cum indicator controls the number of rotation of
the wooden tumbling barrel. The number of rotation is
fully programmable and settable with the help of
membrane keys of digital rotation counter.
|
